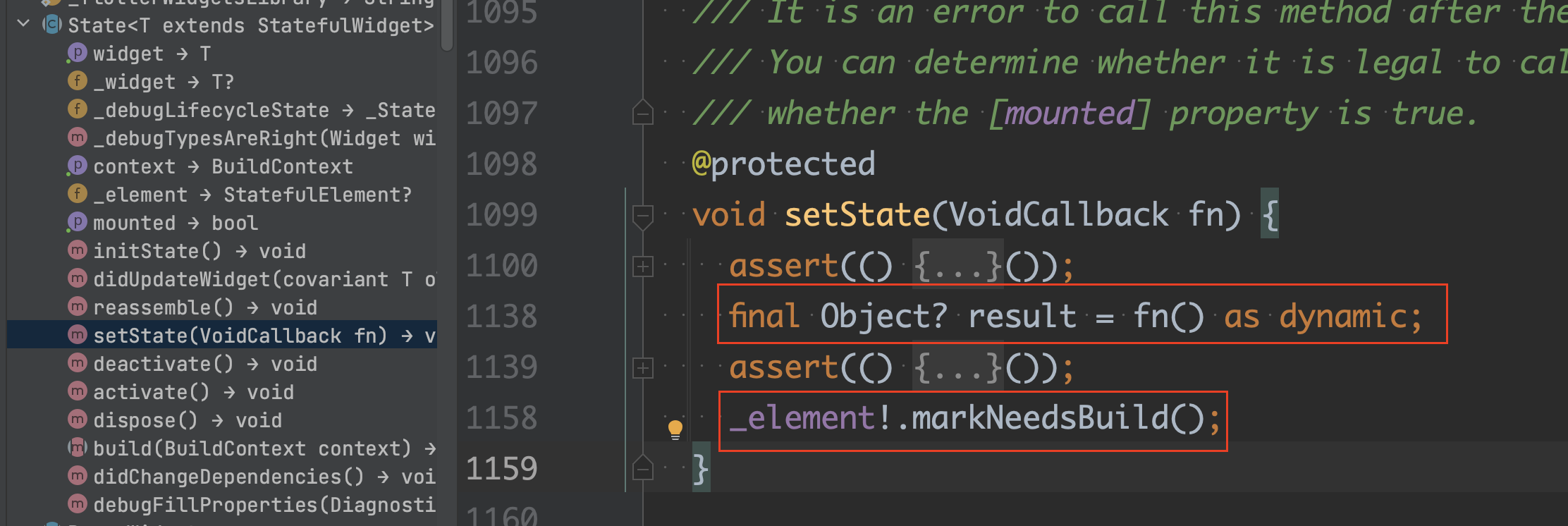

Future<void> _incrementCounter() async {
  setState(() {
    _counter++;
  });
  Directory directory = await getApplicationDocumentsDirectory(); // from path_provider package
  final String dirName = directory.path;
  await File('$dirName/counter.txt').writeAsString('$_counter');
}

1
2
3
4
5
6
7
8
9

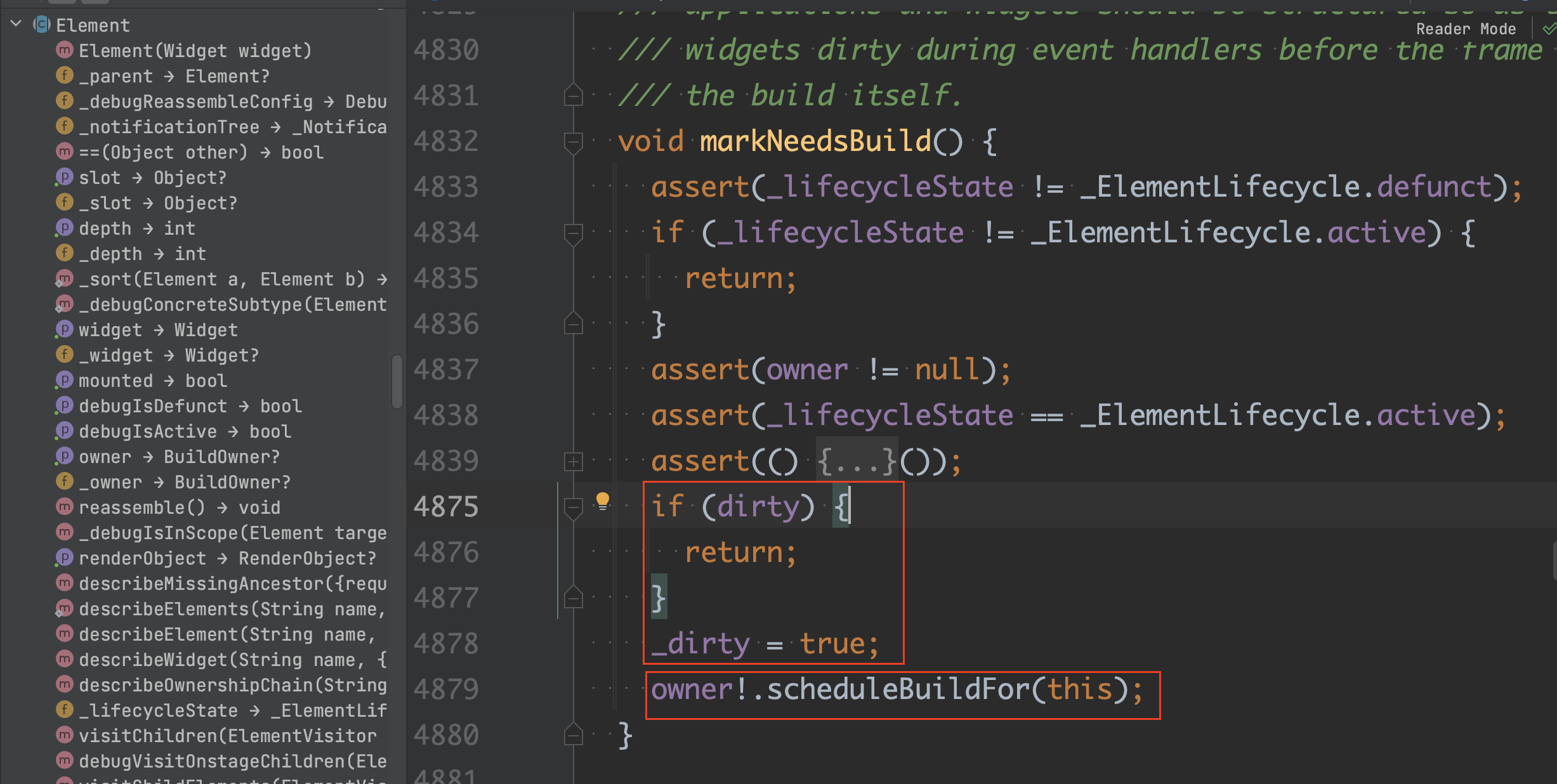

/// 将element标记为脏并将其添加到widgets的全局列表中以在下一帧中重建
/// Marks the element as dirty and adds it to the global list of widgets to
/// rebuild in the next frame.
///
/// 由于在一帧中两次构建一个element是低效的，应用程序和widgets应该被构造为仅在帧开始之前的事件处理程序期间而不是在构建本身期间将widgets标记为脏。
/// Since it is inefficient to build an element twice in one frame,
/// applications and widgets should be structured so as to only mark
/// widgets dirty during event handlers before the frame begins, not during
/// the build itself.

1
2
3
4
5
6
7
8
9

/// 如果element已被标记为需要重建，则返回true。
/// Returns true if the element has been marked as needing rebuilding.
///
/// 当element首次创建且调用markNeedsBuild之后，该标志为true。该标志在performRebuild实现中重置为false。
/// The flag is true when the element is first created and after
/// [markNeedsBuild] has been called. The flag is reset to false in the
/// [performRebuild] implementation.
bool get dirty => _dirty;
bool _dirty = true;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

/// 导致widget自行更新。
/// Cause the widget to update itself.
///
/// 进行适当的检查后由 [rebuild] 调用
/// Called by [rebuild] after the appropriate checks have been made.
///
/// 基本实现仅清除dirty标志。
/// The base implementation only clears the [dirty] flag.
@protected
@mustCallSuper
void performRebuild() {
  _dirty = false;
}

1
2
3
4
5

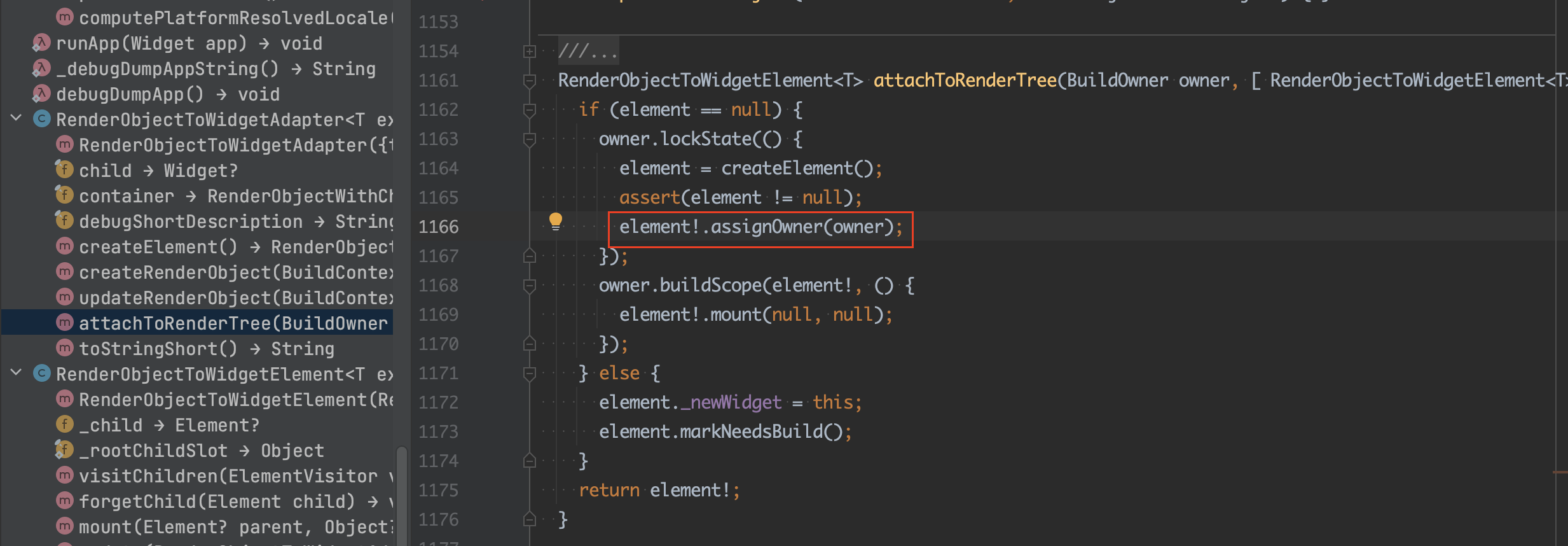

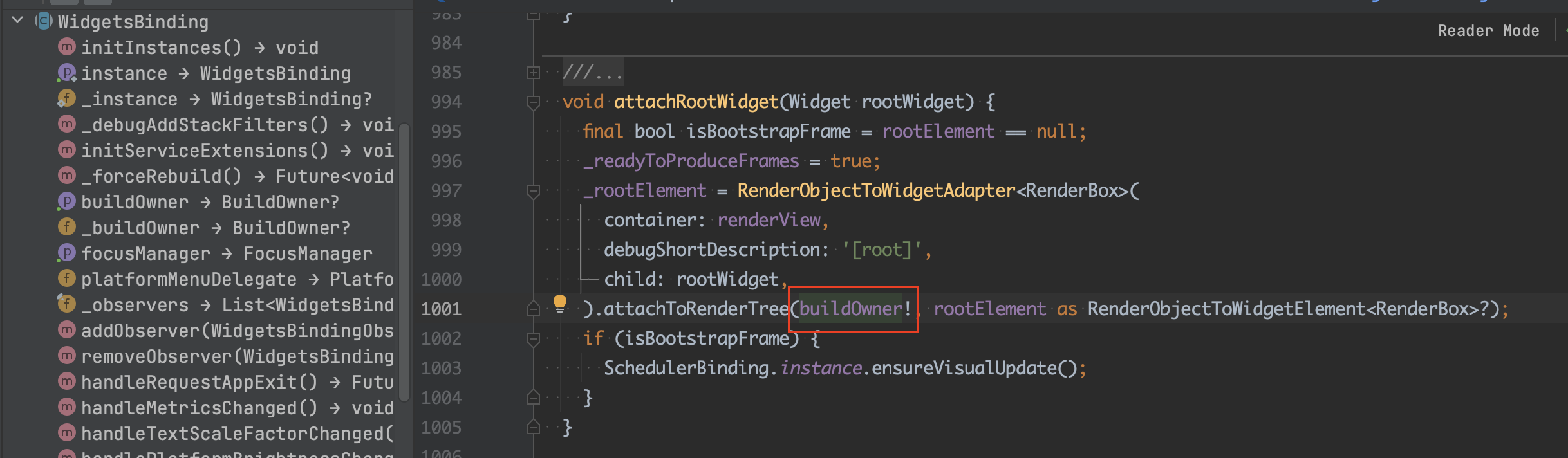

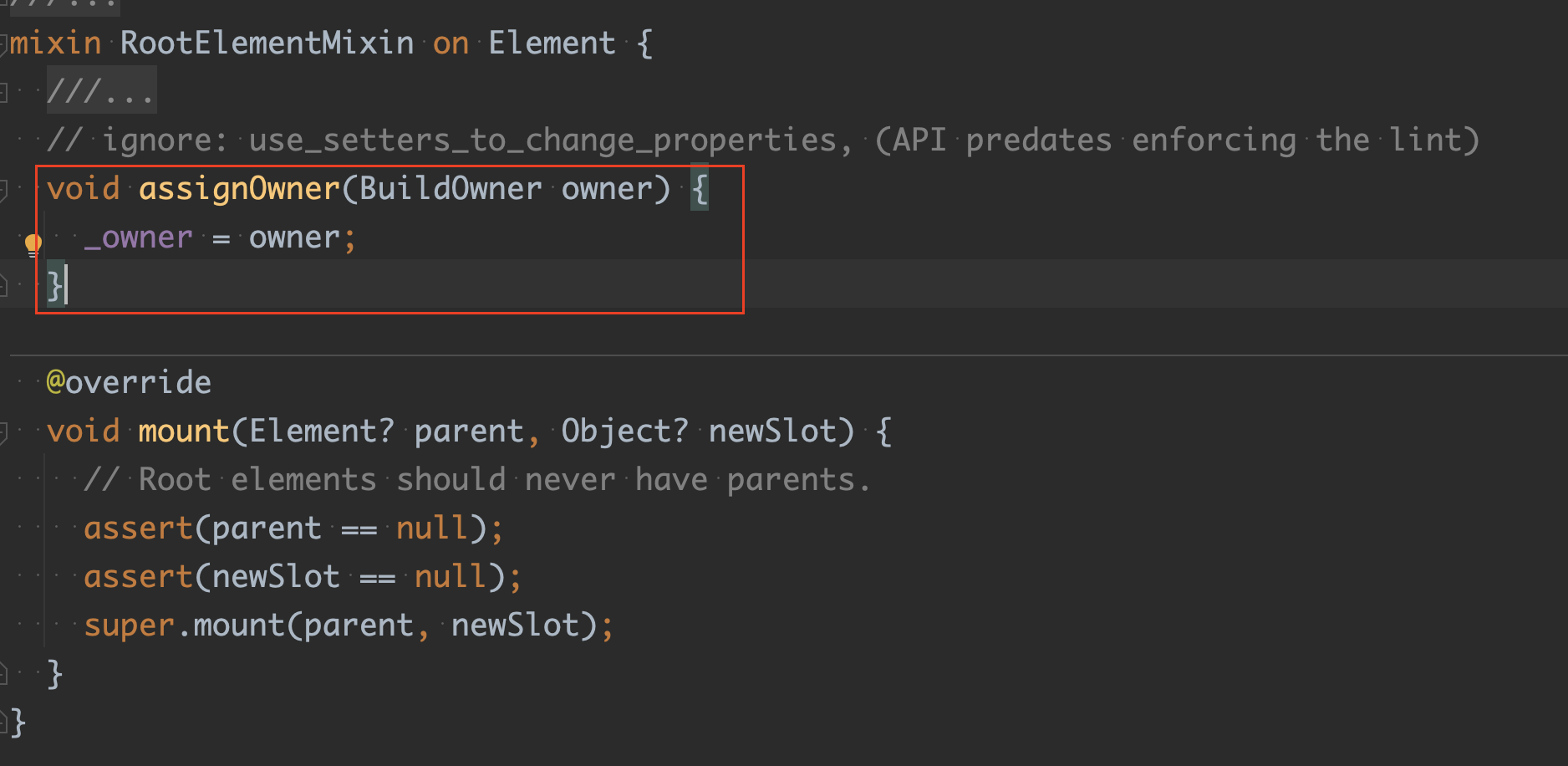

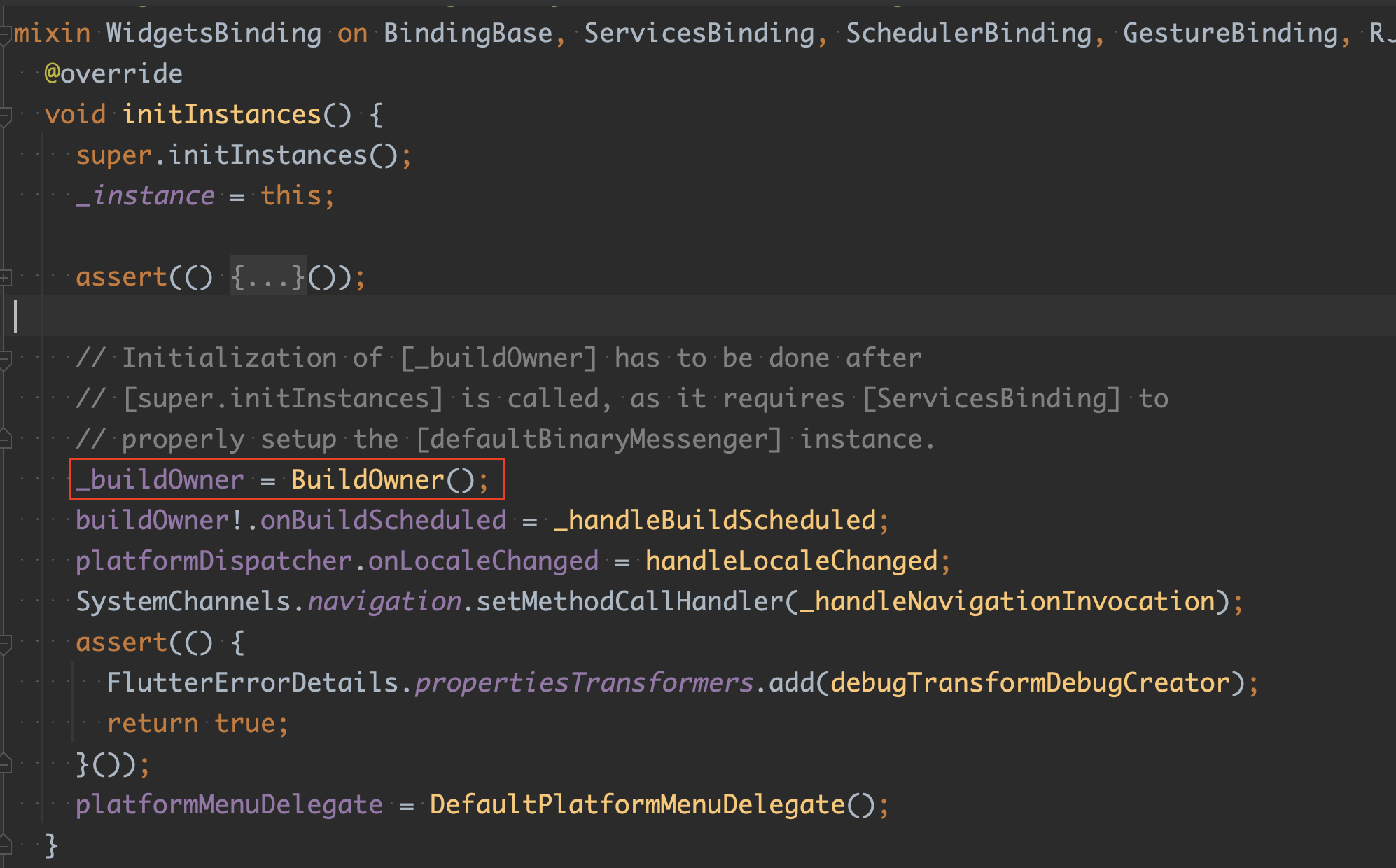

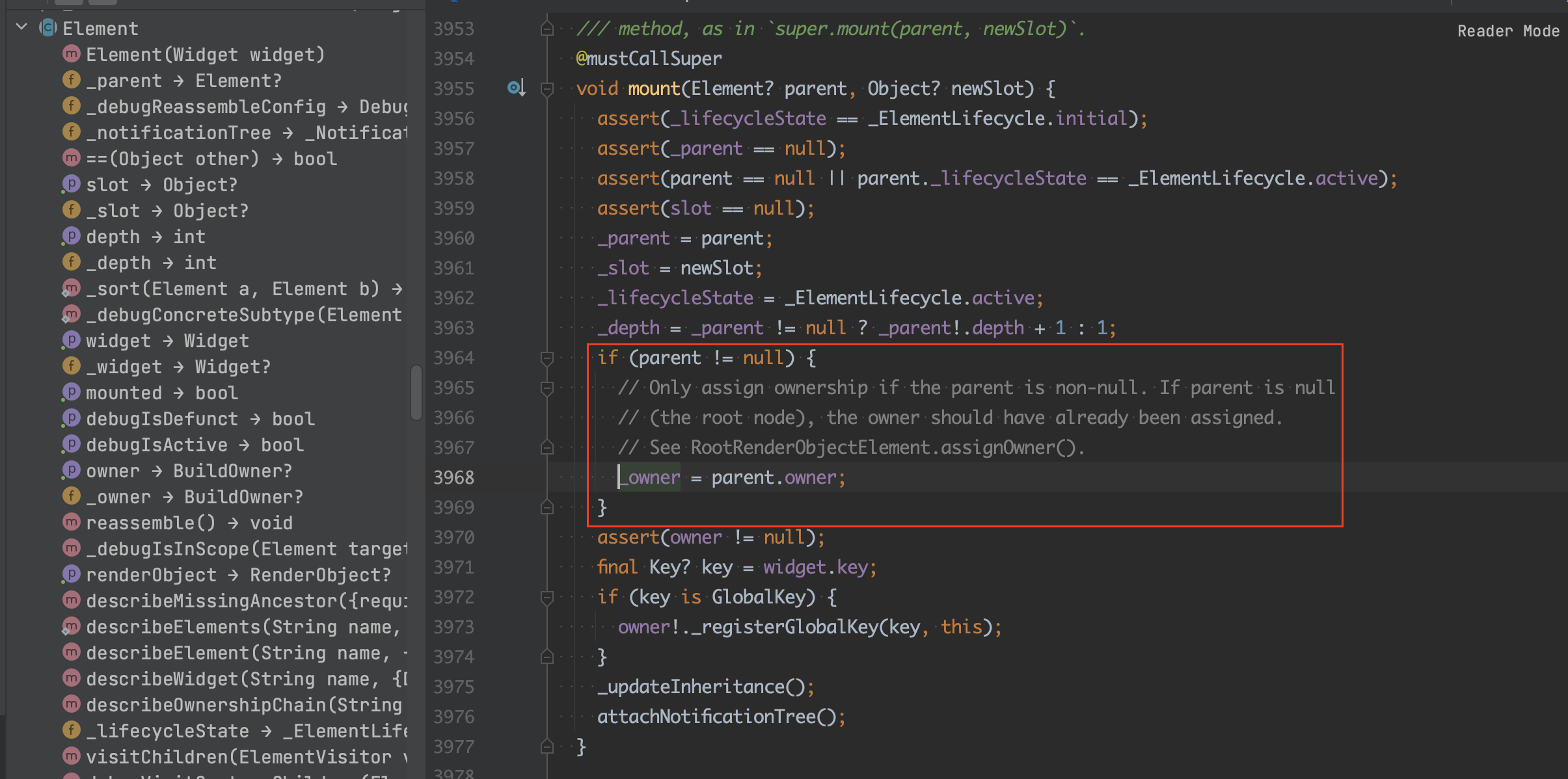

/// 管理该element生命周期的对象
/// The object that manages the lifecycle of this element.
@override
BuildOwner? get owner => _owner;
BuildOwner? _owner;

1
2
3
4

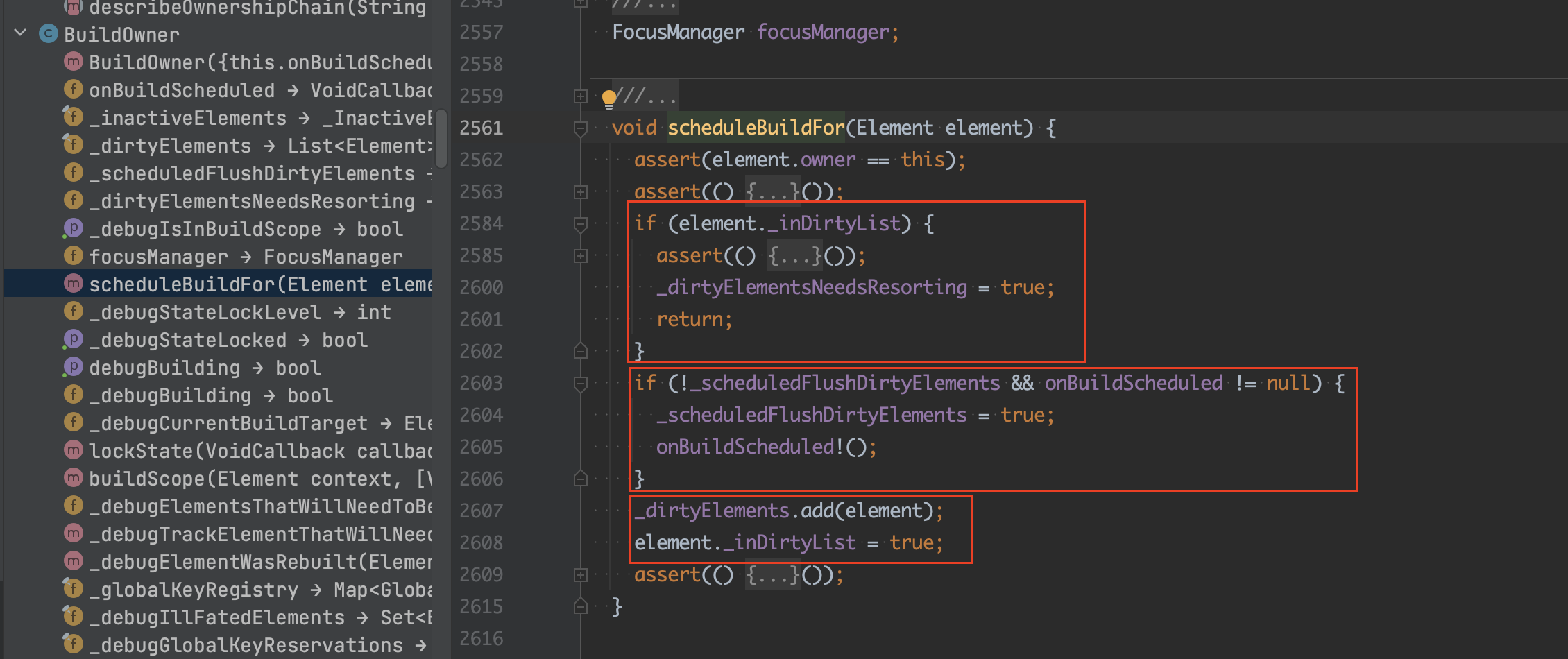

// 这是否在owner._dirtyElements中。这用于知道当element重新激活时我们是否应该将其添加回列表中。
// Whether this is in owner._dirtyElements. This is used to know whether we
// should be adding the element back into the list when it's reactivated.
bool _inDirtyList = false;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

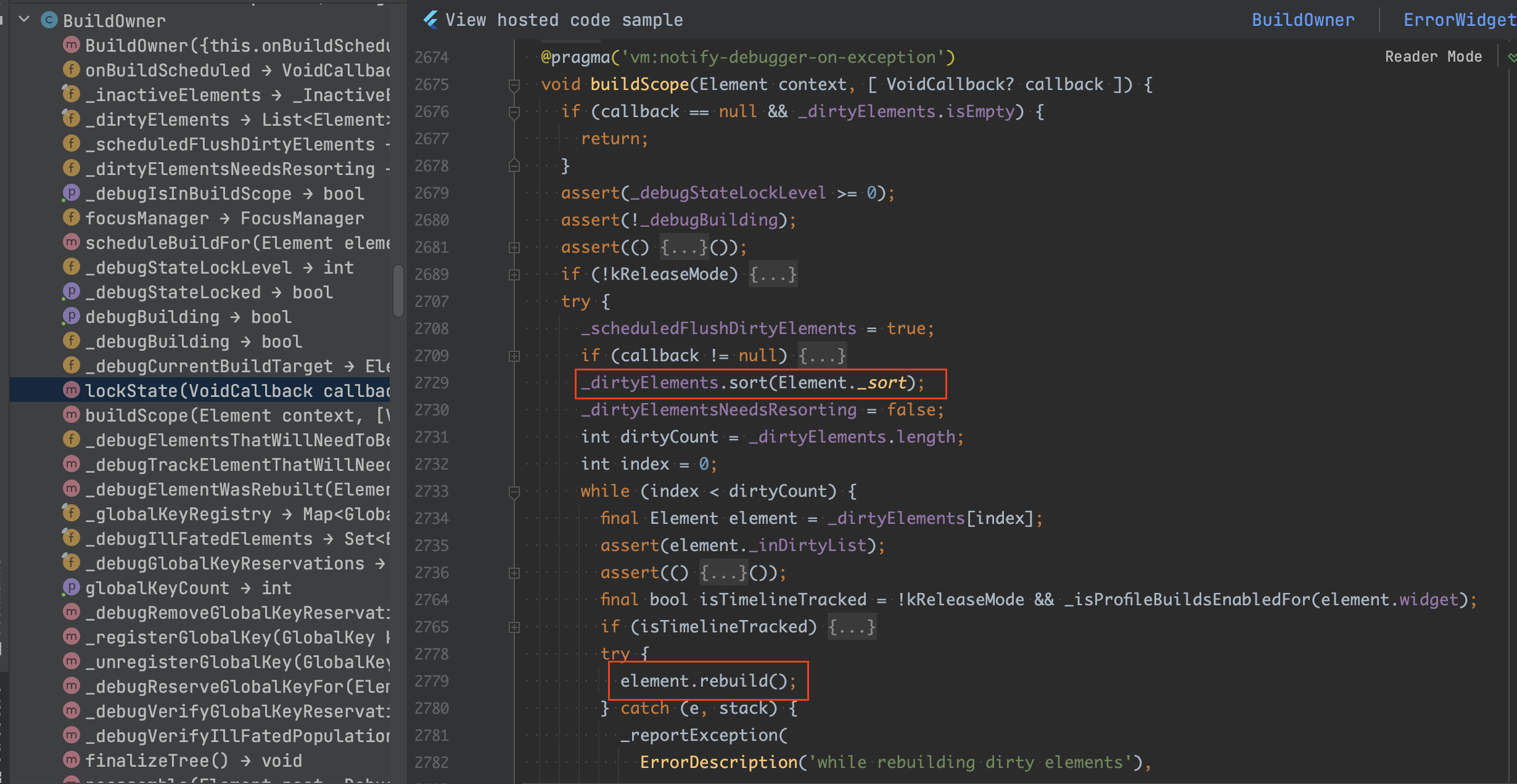

/// 由于在构建过程中更多elements变脏，_dirtyElements是否需要再次排序
/// Whether [_dirtyElements] need to be sorted again as a result of more
/// elements becoming dirty during the build.
///
/// 这对于保留Element._sort定义的排序顺序是必要的
/// This is necessary to preserve the sort order defined by [Element._sort].
///
/// 当buildScope未主动重建widget树时，该字段设置为null。
/// This field is set to null when [buildScope] is not actively rebuilding
/// the widget tree.
bool? _dirtyElementsNeedsResorting;

1
2
3
4

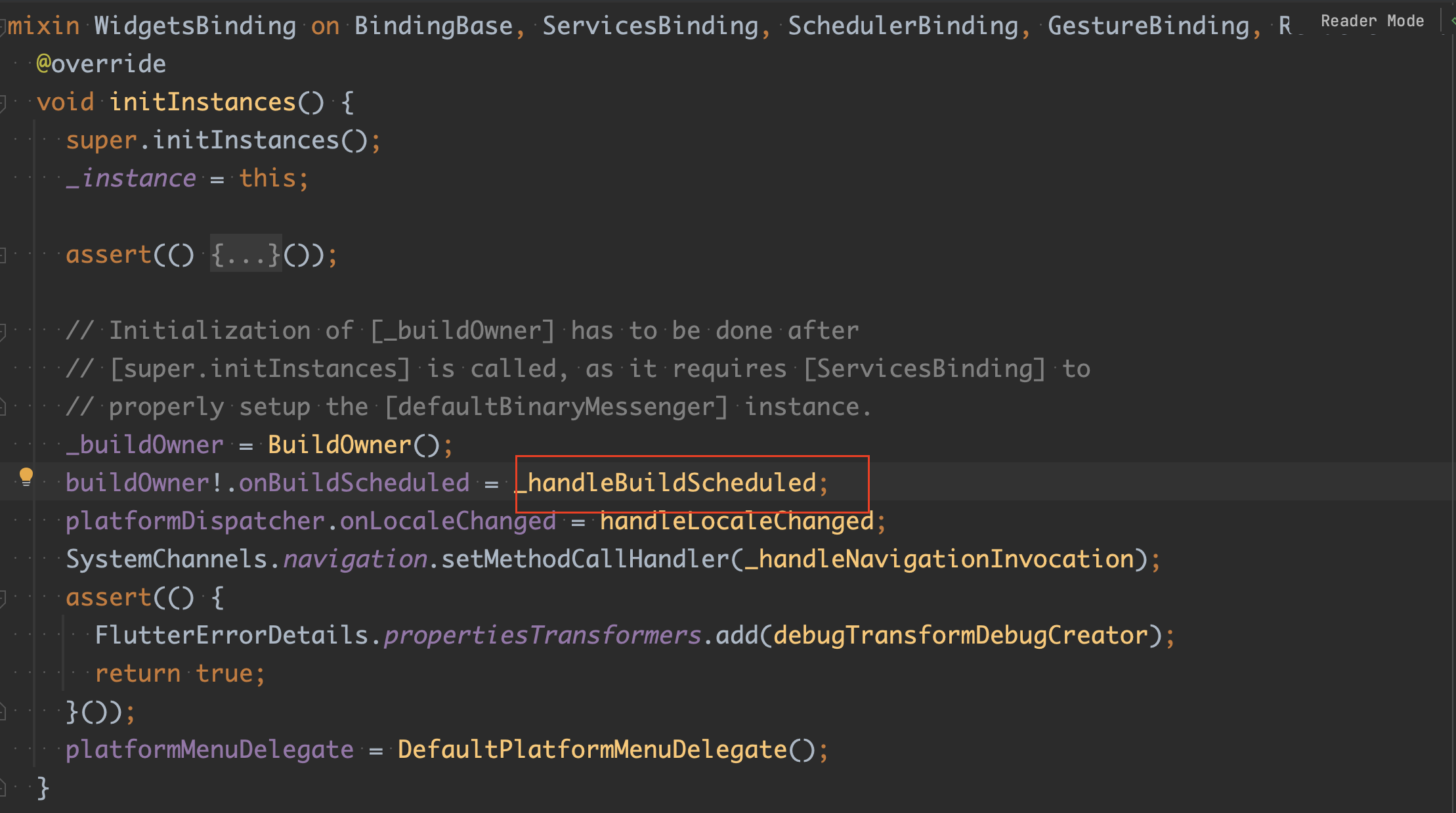

/// 当第一个可构建element被标记为脏时，在每个构建过程中调用
/// Called on each build pass when the first buildable element is marked
/// dirty.
VoidCallback? onBuildScheduled;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

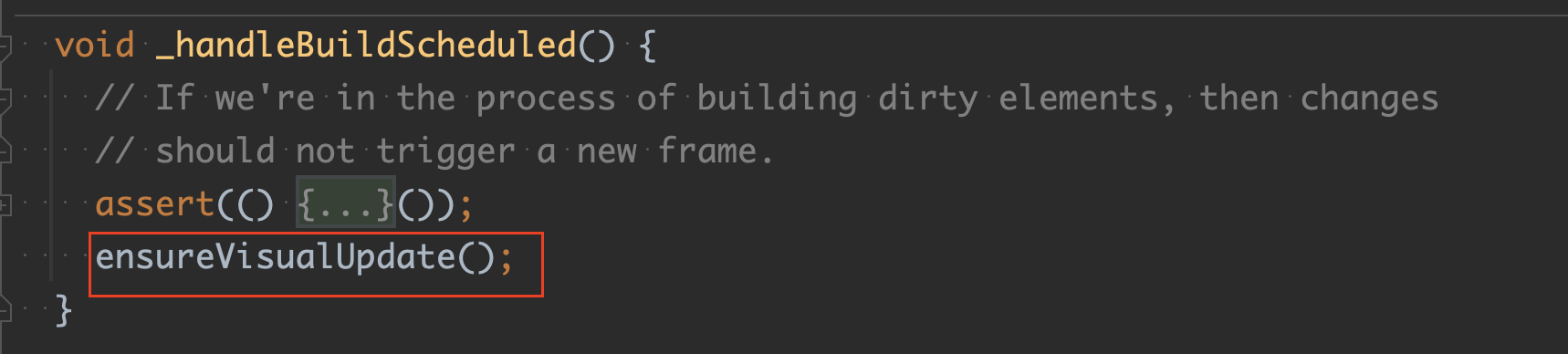

/// 如果该对象当前未生成帧，则使用 [scheduleFrame] 安排新帧。
/// Schedules a new frame using [scheduleFrame] if this object is not
/// currently producing a frame.
///
/// 调用此方法可确保最终调用 [handleDrawFrame]，除非它已经在进行中。
/// Calling this method ensures that [handleDrawFrame] will eventually be
/// called, unless it's already in progress.
///
/// 如果 [schedulerPhase] 是 [SchedulerPhase.transientCallbacks] 或 [SchedulerPhase.midFrameMicrotasks]（因为在这种情况下已经准备好帧）
/// 或 [SchedulerPhase.persistentCallbacks]（因为在这种情况下正在主动渲染帧），则这不起作用）。
/// 如果 [schedulerPhase] 是 [SchedulerPhase.idle]（在帧之间）或 [SchedulerPhase.postFrameCallbacks]（在帧之后），它将调度一个帧。
/// This has no effect if [schedulerPhase] is
/// [SchedulerPhase.transientCallbacks] or [SchedulerPhase.midFrameMicrotasks]
/// (because a frame is already being prepared in that case), or
/// [SchedulerPhase.persistentCallbacks] (because a frame is actively being
/// rendered in that case). It will schedule a frame if the [schedulerPhase]
/// is [SchedulerPhase.idle] (in between frames) or
/// [SchedulerPhase.postFrameCallbacks] (after a frame).
void ensureVisualUpdate() {
  switch (schedulerPhase) {
    case SchedulerPhase.idle:
    case SchedulerPhase.postFrameCallbacks:
      scheduleFrame();
      return;
    case SchedulerPhase.transientCallbacks:
    case SchedulerPhase.midFrameMicrotasks:
    case SchedulerPhase.persistentCallbacks:
      return;
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

/// SchedulerBinding在SchedulerBinding.handleBeginFrame期间经历的各个阶段。
/// The various phases that a [SchedulerBinding] goes through during
/// [SchedulerBinding.handleBeginFrame].
///
/// 这是由SchedulerBinding.schedulerPhase公开的
/// This is exposed by [SchedulerBinding.schedulerPhase].
///
/// 该枚举的值按照与阶段发生的顺序相同的顺序排序，因此可以将它们的相对索引值相互比较
/// The values of this enum are ordered in the same order as the phases occur,
/// so their relative index values can be compared to each other.
enum SchedulerPhase {
  /// 没有正在处理的帧。任务（由SchedulerBinding.scheduleTask调度）、微任务（由scheduleMicrotask调度）、
  /// Timer回调、事件处理程序（例如，来自用户输入）和其它回调（例如，来自Future、 Stream等）可能正在执行。
  /// No frame is being processed. Tasks (scheduled by
  /// [SchedulerBinding.scheduleTask]), microtasks (scheduled by
  /// [scheduleMicrotask]), [Timer] callbacks, event handlers (e.g. from user
  /// input), and other callbacks (e.g. from [Future]s, [Stream]s, and the like)
  /// may be executing.
  idle,

  /// 瞬态回调（由SchedulerBinding.scheduleFrameCallback调度）当前正在执行。
  /// The transient callbacks (scheduled by
  /// [SchedulerBinding.scheduleFrameCallback]) are currently executing.
  ///
  /// 通常，这些回调处理将对象更新为新的动画状态
  /// Typically, these callbacks handle updating objects to new animation
  /// states.
  ///
  /// See [SchedulerBinding.handleBeginFrame].
  transientCallbacks,

  /// 当前正在执行处理瞬态回调期间安排的微任务。
  /// Microtasks scheduled during the processing of transient callbacks are
  /// current executing.
  ///
  /// 例如，这可能包括来自在transientCallbacks阶段解析的future的回调
  /// This may include, for instance, callbacks from futures resolved during the
  /// [transientCallbacks] phase.
  midFrameMicrotasks,

  /// 持久回调（由SchedulerBinding.addPersistentFrameCallback调度）当前正在执行
  /// The persistent callbacks (scheduled by
  /// [SchedulerBinding.addPersistentFrameCallback]) are currently executing.
  ///
  /// 通常，这是构建/布局/绘制管道。
  /// Typically, this is the build/layout/paint pipeline. See
  /// [WidgetsBinding.drawFrame] and [SchedulerBinding.handleDrawFrame].
  persistentCallbacks,

  /// 帧后回调（由SchedulerBinding.addPostFrameCallback调度）当前正在执行
  /// The post-frame callbacks (scheduled by
  /// [SchedulerBinding.addPostFrameCallback]) are currently executing.
  ///
  /// 通常，这些回调处理下一帧的清理和工作安排
  /// Typically, these callbacks handle cleanup and scheduling of work for the
  /// next frame.
  ///
  /// See [SchedulerBinding.handleDrawFrame].
  postFrameCallbacks,
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

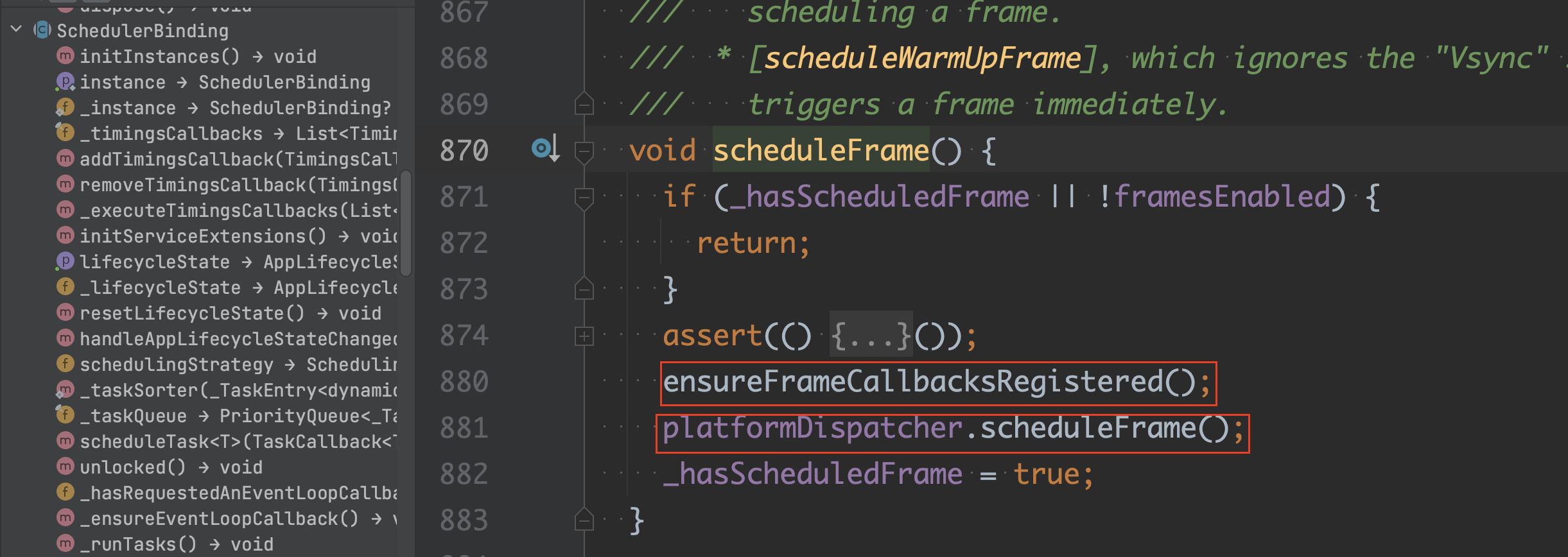

/// 如有必要，通过调用dart:ui.PlatformDispatcher.scheduleFrame来安排新帧。
/// If necessary, schedules a new frame by calling
/// [dart:ui.PlatformDispatcher.scheduleFrame].
///
/// 调用此函数后，引擎将（最终）调用handleBeginFrame 。 （此调用可能会延迟，例如，如果设备的屏幕关闭，则通常会延迟，直到屏幕打开并且应用程序可见。）
/// 在一个帧期间调用此函数会强制调度另一个帧，即使当前帧已尚未完成。
/// After this is called, the engine will (eventually) call
/// [handleBeginFrame]. (This call might be delayed, e.g. if the device's
/// screen is turned off it will typically be delayed until the screen is on
/// and the application is visible.) Calling this during a frame forces
/// another frame to be scheduled, even if the current frame has not yet
/// completed.
///
/// 当操作系统提供的“Vsync”信号触发时，调度帧就会得到服务。 “Vsync”信号或垂直同步信号在历史上与显示器刷新相关，当时硬件在显示器更新之间物理地垂直移动电子束。
/// 现代硬件的操作在某种程度上更加微妙和复杂，但概念性的“Vsync”刷新信号继续用于指示应用程序何时应更新其渲染
/// Scheduled frames are serviced when triggered by a "Vsync" signal provided
/// by the operating system. The "Vsync" signal, or vertical synchronization
/// signal, was historically related to the display refresh, at a time when
/// hardware physically moved a beam of electrons vertically between updates
/// of the display. The operation of contemporary hardware is somewhat more
/// subtle and complicated, but the conceptual "Vsync" refresh signal continue
/// to be used to indicate when applications should update their rendering.

1
2
3
4
5
6
7
8

/// 确保PlatformDispatcher.onBeginFrame和PlatformDispatcher.onDrawFrame的回调已注册。
/// Ensures callbacks for [PlatformDispatcher.onBeginFrame] and
/// [PlatformDispatcher.onDrawFrame] are registered.
@protected
void ensureFrameCallbacksRegistered() {
  platformDispatcher.onBeginFrame ??= _handleBeginFrame;
  platformDispatcher.onDrawFrame ??= _handleDrawFrame;
}

1
2
3
4
5
6
7

/// 请求在下一个适当的机会调用onBeginFrame和onDrawFrame回调。
/// Requests that, at the next appropriate opportunity, the [onBeginFrame] and
/// [onDrawFrame] callbacks be invoked.
void scheduleFrame() => _scheduleFrame();

@Native<Void Function()>(symbol: 'PlatformConfigurationNativeApi::ScheduleFrame')
external static void _scheduleFrame();

1
2
3
4
5

// /FlutterSDK/flutter/bin/cache/pkg/sky_engine/lib/ui/hooks.dart
@pragma('vm:entry-point')
void _drawFrame() {
  PlatformDispatcher.instance._drawFrame();
}

1
2
3
4

// Called from the engine, via hooks.dart
void _drawFrame() {
  _invoke(onDrawFrame, _onDrawFrameZone);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

// /FlutterSDK/flutter/bin/cache/pkg/sky_engine/lib/ui/hooks.dart
/// Invokes [callback] inside the given [zone].
void _invoke(void Function()? callback, Zone zone) {
  if (callback == null) {
    return;
  }
  if (identical(zone, Zone.current)) {
    callback();
  } else {
    zone.runGuarded(callback);
  }
}

1
2
3
4
5
6
7
8

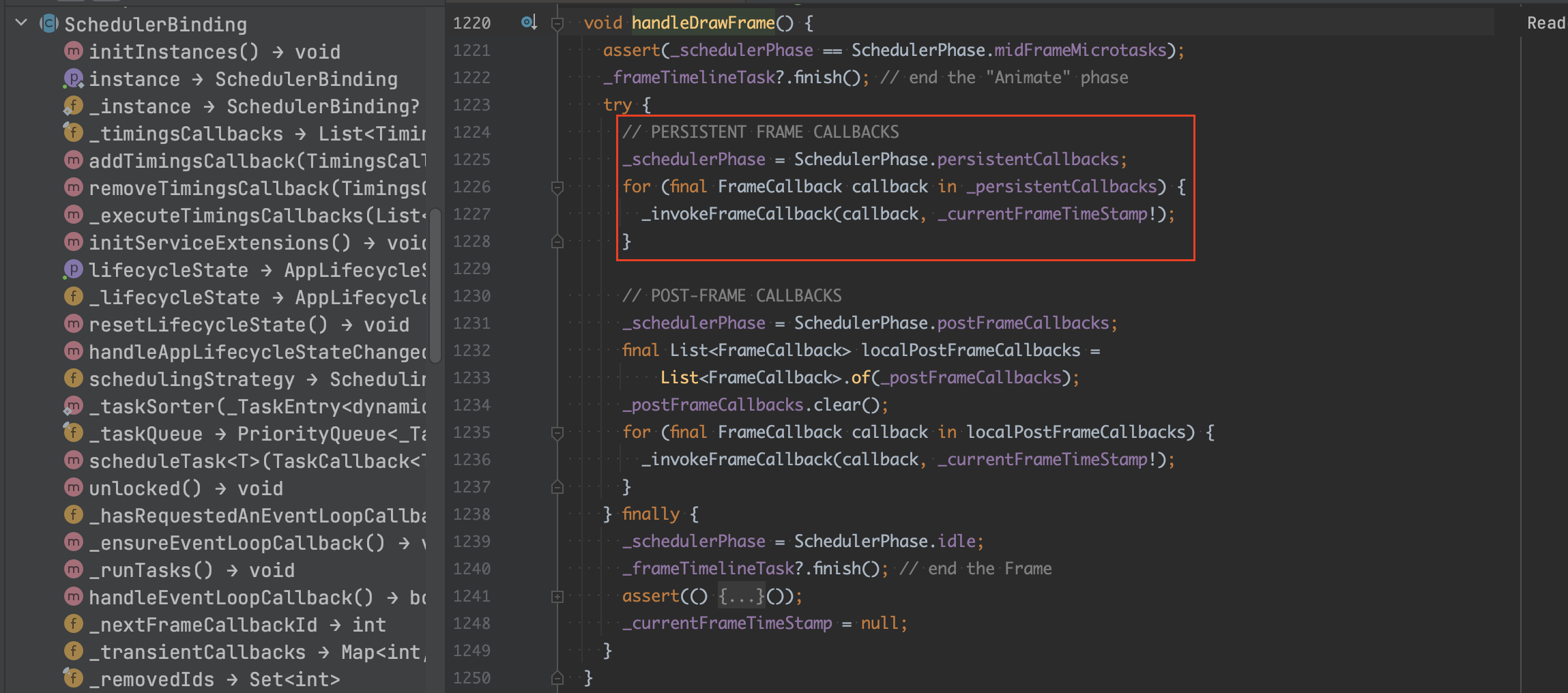

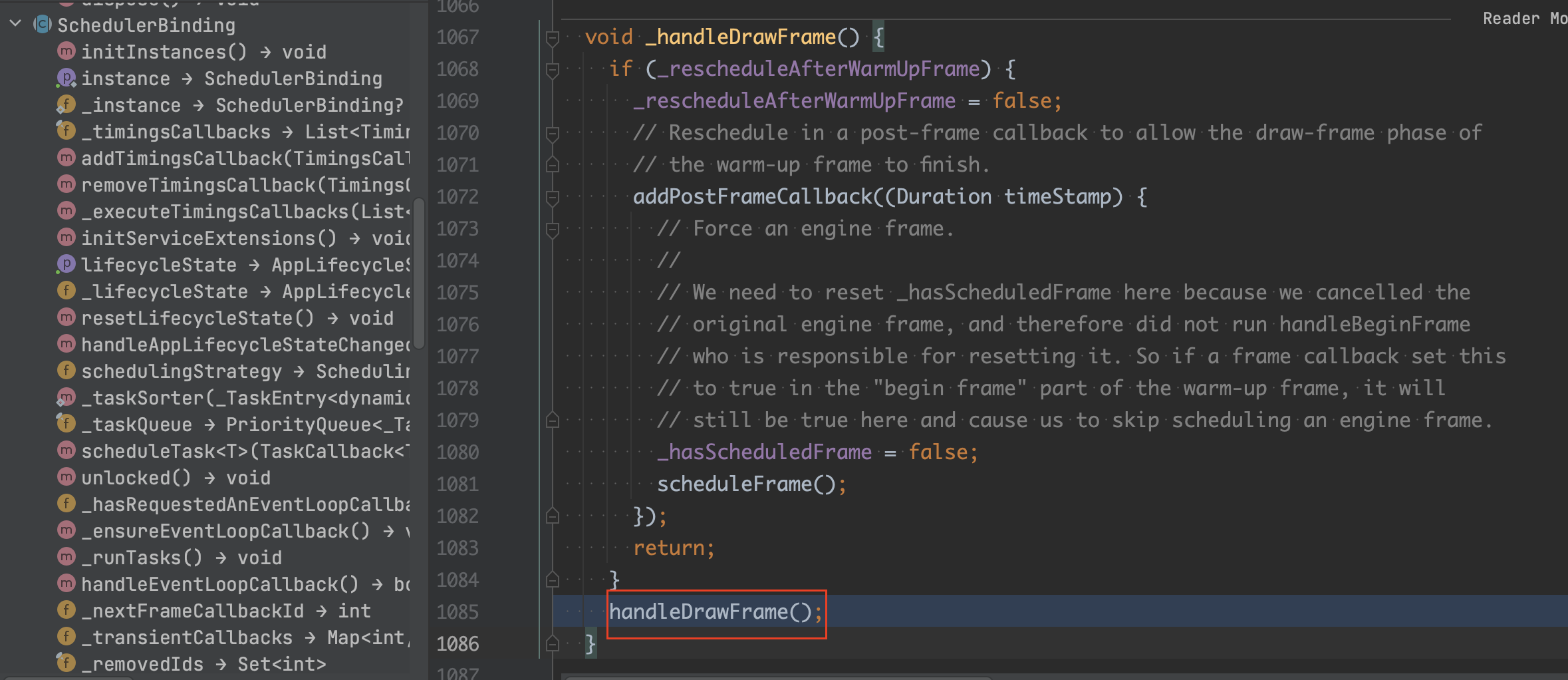

/// 由引擎调用以产生新的帧
/// Called by the engine to produce a new frame.
///
/// 该方法在handleBeginFrame之后立即调用。它调用addPersistentFrameCallback注册的所有回调（通常驱动渲染管道），然后调用addPostFrameCallback注册的回调
/// This method is called immediately after [handleBeginFrame]. It calls all
/// the callbacks registered by [addPersistentFrameCallback], which typically
/// drive the rendering pipeline, and then calls the callbacks registered by
/// [addPostFrameCallback].

1
2
3
4

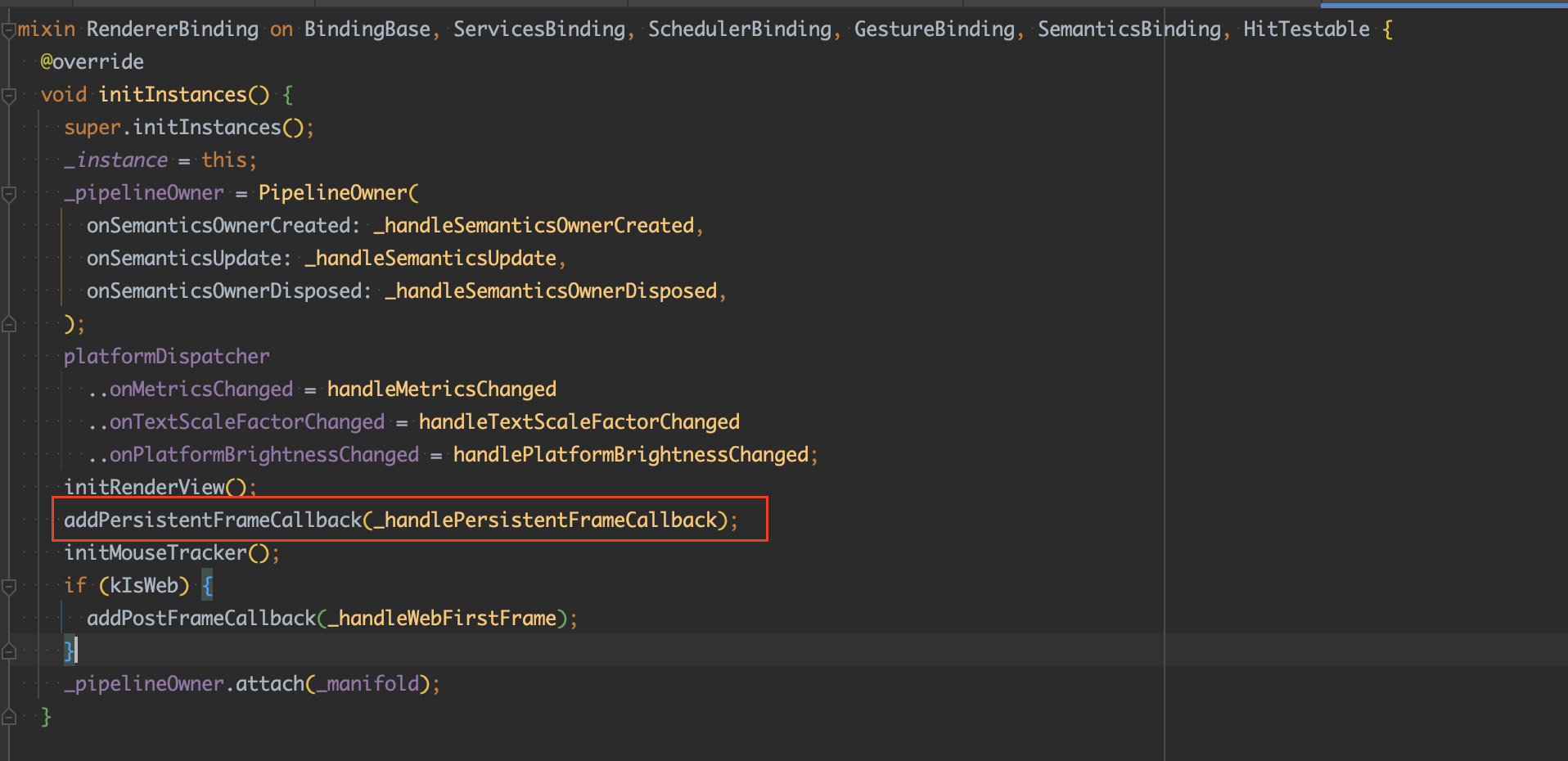

void _handlePersistentFrameCallback(Duration timeStamp) {
  drawFrame();
  _scheduleMouseTrackerUpdate();
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81

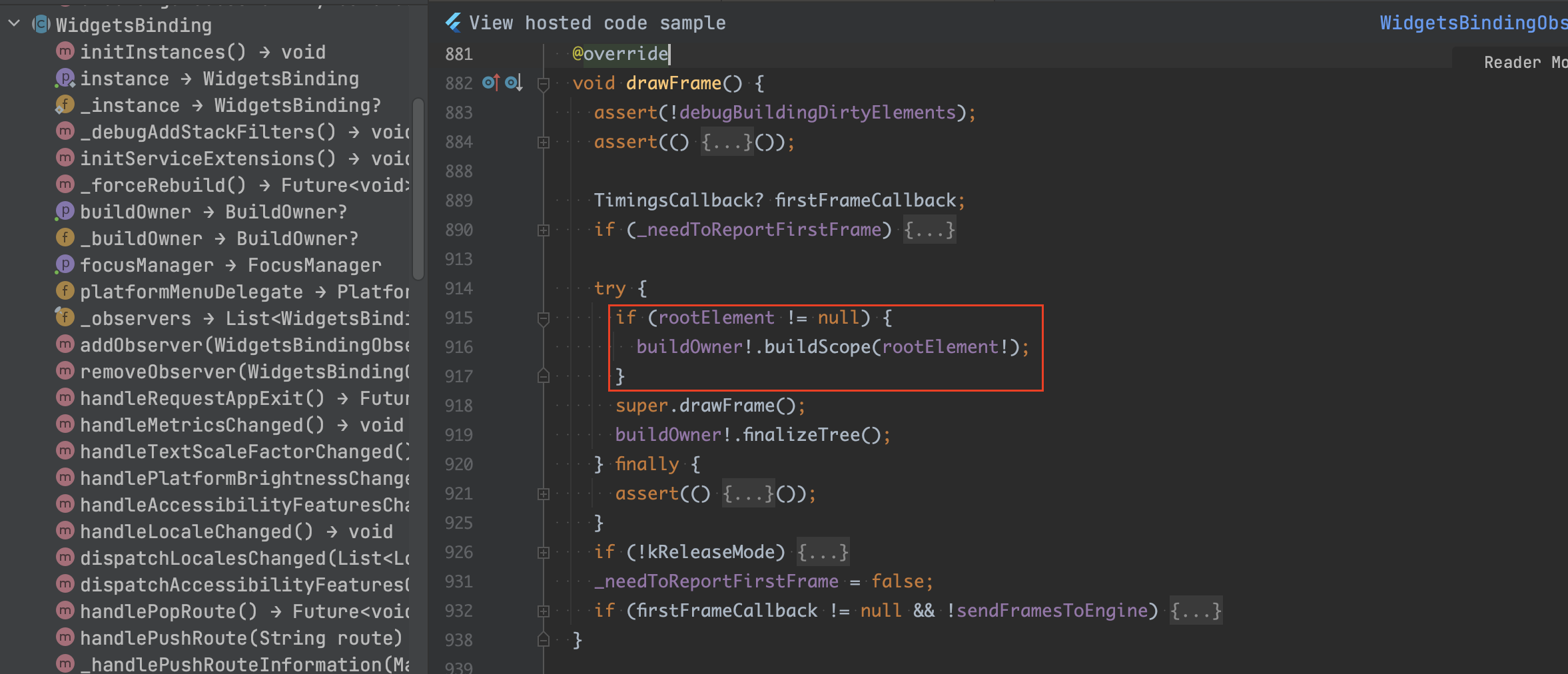

/// 泵送渲染管道以生成帧
/// Pump the rendering pipeline to generate a frame.
///
/// 该方法由handleDrawFrame调用，当需要布局和绘制框架时，该方法本身由引擎自动调用。
/// This method is called by [handleDrawFrame], which itself is called
/// automatically by the engine when it is time to lay out and paint a frame.
///
/// 每个帧由以下阶段组成：
/// Each frame consists of the following phases:
///
/// 1.动画阶段：在PlatformDispatcher.onBeginFrame中注册的handleBeginFrame方法按注册顺序调用在scheduleFrameCallback中注册的所有瞬态帧回调。
/// 这包括驱动AnimationController对象的所有Ticker实例，这意味着所有活动的Animation对象此时都会勾选。
/// 1. The animation phase: The [handleBeginFrame] method, which is registered
/// with [PlatformDispatcher.onBeginFrame], invokes all the transient frame
/// callbacks registered with [scheduleFrameCallback], in registration order.
/// This includes all the [Ticker] instances that are driving
/// [AnimationController] objects, which means all of the active [Animation]
/// objects tick at this point.
///
/// 2. 微任务：[handleBeginFrame] 返回后，由瞬态帧回调调度的任何微任务都会开始运行。
/// 这通常包括来自完成此帧的 [Ticker] 和 [AnimationController] 的 future 回调。
/// 2. Microtasks: After [handleBeginFrame] returns, any microtasks that got
/// scheduled by transient frame callbacks get to run. This typically includes
/// callbacks for futures from [Ticker]s and [AnimationController]s that
/// completed this frame.
///
/// 在 [handleBeginFrame] 之后，调用在 [dart:ui.PlatformDispatcher.onDrawFrame] 中注册的 [handleDrawFrame]，
/// 它会调用所有持久帧回调，其中最值得注意的是这个方法 [drawFrame]，其执行过程如下如下：
/// After [handleBeginFrame], [handleDrawFrame], which is registered with
/// [dart:ui.PlatformDispatcher.onDrawFrame], is called, which invokes all the
/// persistent frame callbacks, of which the most notable is this method,
/// [drawFrame], which proceeds as follows:
///
/// 3. 布局阶段：系统中所有脏的[RenderObject]都被布局
/// 3. The layout phase: All the dirty [RenderObject]s in the system are laid
/// out (see [RenderObject.performLayout]). See [RenderObject.markNeedsLayout]
/// for further details on marking an object dirty for layout.
///
/// 4. 合成位阶段：更新任何脏 [RenderObject] 对象上的合成位。
/// 4. The compositing bits phase: The compositing bits on any dirty
/// [RenderObject] objects are updated. See
/// [RenderObject.markNeedsCompositingBitsUpdate].
///
/// 5. 绘制阶段：系统中所有脏的[RenderObject]都被重新绘制（参见[RenderObject.paint]）。这会生成[图层]树。
/// 5. The paint phase: All the dirty [RenderObject]s in the system are
/// repainted (see [RenderObject.paint]). This generates the [Layer] tree. See
/// [RenderObject.markNeedsPaint] for further details on marking an object
/// dirty for paint.
///
/// 6. 合成阶段：将图层树变成【场景】并发送到GPU。
/// 6. The compositing phase: The layer tree is turned into a [Scene] and
/// sent to the GPU.
///
/// 7. 语义阶段：系统中所有脏的[RenderObject]都更新了它们的语义。这会生成 [SemanticsNode] 树。
/// 7. The semantics phase: All the dirty [RenderObject]s in the system have
/// their semantics updated. This generates the [SemanticsNode] tree. See
/// [RenderObject.markNeedsSemanticsUpdate] for further details on marking an
/// object dirty for semantics.
///
/// For more details on steps 3-7, see [PipelineOwner].
///
/// 8. 最终确定阶段：[drawFrame] 返回后，[handleDrawFrame] 调用帧后回调（在 [addPostFrameCallback] 中注册）。
/// 8. The finalization phase: After [drawFrame] returns, [handleDrawFrame]
/// then invokes post-frame callbacks (registered with [addPostFrameCallback]).
///
/// 某些绑定（例如，[WidgetsBinding]）会向此列表添加额外的步骤（例如，请参阅[WidgetsBinding.drawFrame]）。
/// Some bindings (for example, the [WidgetsBinding]) add extra steps to this
/// list (for example, see [WidgetsBinding.drawFrame]).
//
// When editing the above, also update widgets/binding.dart's copy.
@protected
void drawFrame() {
  pipelineOwner.flushLayout();
  pipelineOwner.flushCompositingBits();
  pipelineOwner.flushPaint();
  if (sendFramesToEngine) {
    renderView.compositeFrame(); // this sends the bits to the GPU
    pipelineOwner.flushSemantics(); // this also sends the semantics to the OS.
    _firstFrameSent = true;
  }
}
